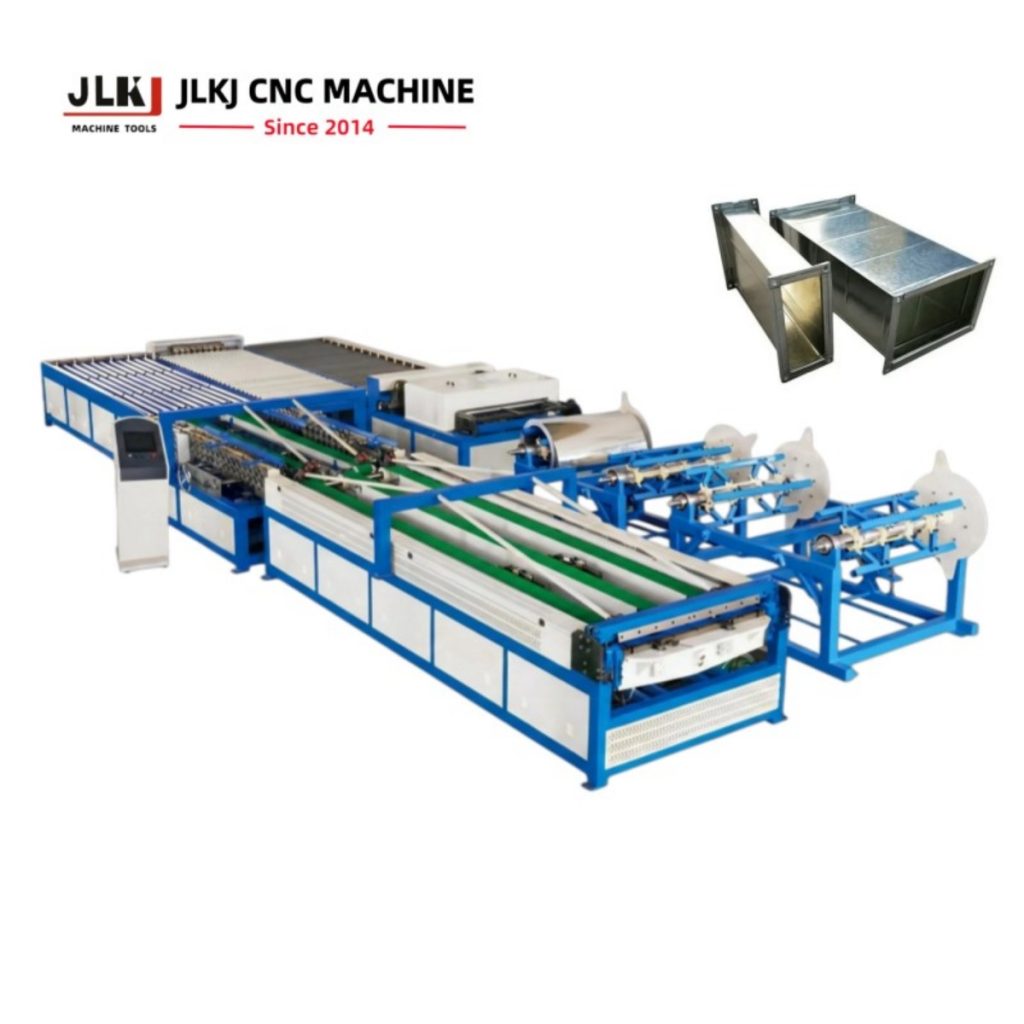

Auto Duct Line U5 – CNC HVAC Rectangular Air Duct Production Line
Full Automatic U-Shape Line: Modular space-saving U-layout integrating decoiling, leveling, beading, notching, shearing, Pittsburgh lock forming, duplex TDF flange forming, and hydraulic folding into a single continuous process.
High Working Capacity & Speed: Maximum line speed of 15 m/min; handles galvanized steel sheets up to 1.2 mm and stainless steel up to 1.0 mm (supports 7-ton heavy coil capacity).
Versatile Flange Compatibility: Directly outputs complete rectangular ducts supporting both TDF common plate flange and angle iron flange connections, compatible with TDC plug-in flanges.
Industrial Grade Precision: Driven by Taiwan Yonghong CNC touchscreen control (upgradeable to Mitsubishi/Siemens), paired with Cr12MoV vacuum-quenched forming rollers and H13 shearing blades.
Overview & High-Efficiency U-Shape Design
The Auto Duct Line U5 (ADL 5U Series) is a cutting-edge, fully automatic CNC rectangular air duct manufacturing system designed with an optimized modular U-shape architecture. By folding the production pathway into a compact footprint, it maximizes factory floor efficiency while coordinating multiple workstations to run simultaneously at high speeds.
From raw coil steel to complete four-sided rectangular ducts with formed seams and flanges, the entire cycle is completed without intermediate manual handling, drastically reducing labor costs and ensuring consistent dimensional precision.
Integrated Workstations & Core Functions
- Electric Decoiler Racks: Driven by independent frequency-controlled motors, supporting 4 sets of coils with automated switching.
- Leveling, Grooving & Notching Unit: High-precision roller leveling, reinforcing beading, sharp notching, TDF slotting, and angle flange punching.
- Multifunctional Pittsburgh Lock Forming: High-accuracy roll forming station for solid seams and seamless corner assembly.

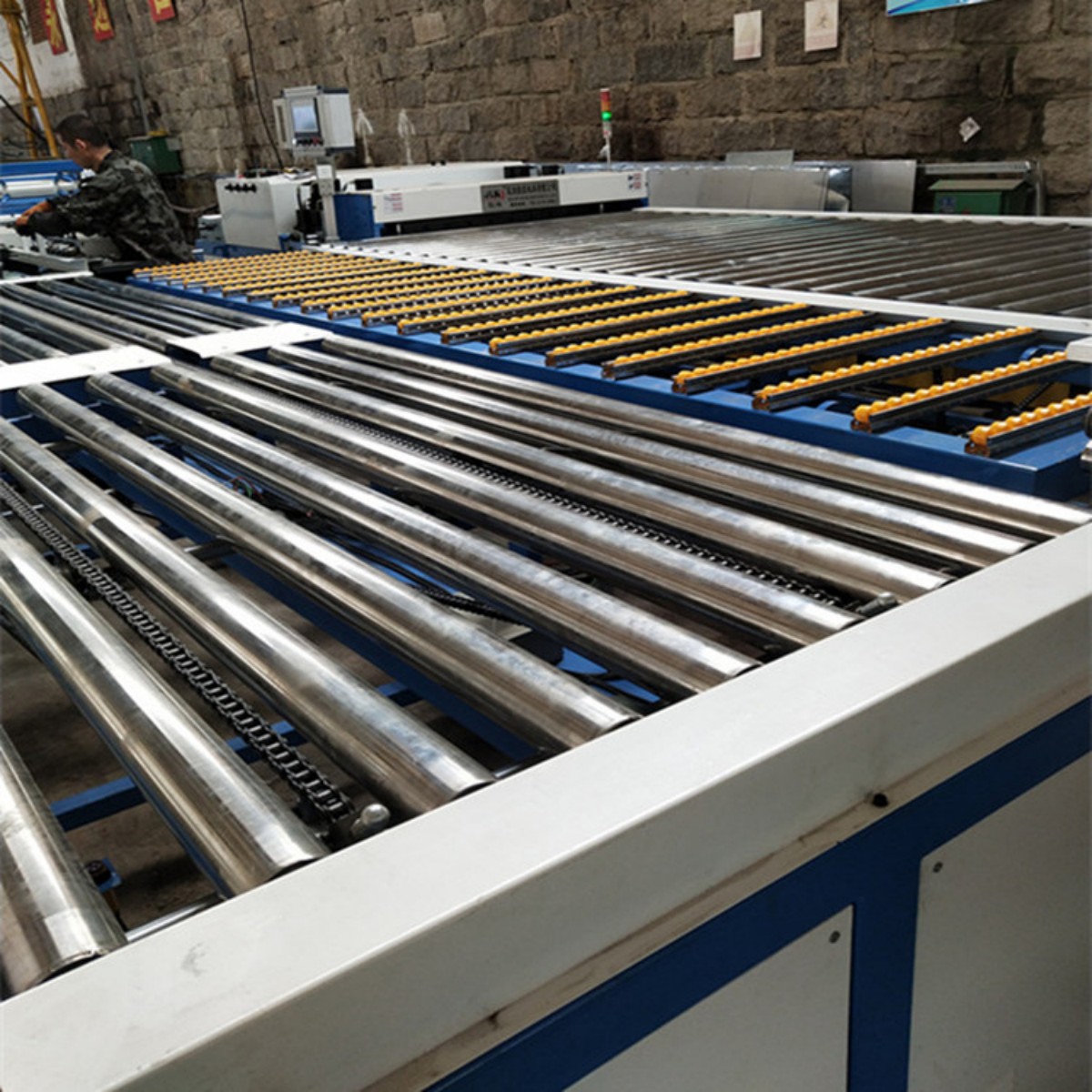

- Servo Transfer & Duplex TDF Flange Station: Dual-sided high-speed roll forming unit for common-plate TDF flange fabrication.
- Hydraulic TDF Folding Station: Automated sheet positioning for quick 90-degree folding into complete rectangular duct profiles.
Technical Parameters (ADL 5U Series)
| Item | ADL 5U-1250 | ADL 5U-1500 |
|---|---|---|
| Processing Sheet Thickness | 0.5 – 1.2 mm | 0.5 – 1.2 mm |
| Processing Sheet Width | 1250 mm | 1500 mm |
| Working Speed | 15 m/min | 15 m/min |
| Max. Coil Weight | 7 Tons | 7 Tons |
| Overall Dimensions (L×W×H) | 14500 × 4950 × 1500 mm (Packed in 1 × 40′ High Cube Container) |
14500 × 5350 × 1500 mm (Packed in 1 × 40′ High Cube Container) |
| Total Power | 32.5 kW | 32.5 kW |
| Machine Weight | 12 Tons | 13 Tons |
| Length Processing Accuracy | ±0.4 mm | ±0.4 mm |
| Diagonal Accuracy | ±0.7 mm | ±0.7 mm |
| Shearing / Bending Error | ±0.1 ~ 0.2 mm | ±0.1 ~ 0.2 mm |
| Applicable Materials | Galvanized: 0.5–1.2 mm Stainless steel: 0.4–1.0 mm |
Galvanized: 0.5–1.2 mm Stainless steel: 0.4–1.0 mm |
| Coil Inner Diameter | Φ480 – Φ620 mm (4-core holder) | Φ480 – Φ620 mm (4-core holder) |
| Leveling Accuracy | ≤ ±0.1 mm/m | ≤ ±0.1 mm/m |
| Model Changeover Time | ≤ 10 min | ≤ 10 min |
Component Brands & Specifications
| Component | Brand / Standard Configuration |
|---|---|
| Main Motor | Top domestic brand – Shanghai Huyuan |
| Oil Pump & Valve Unit | Nantong Oukaide |
| Oil Cylinder | Top domestic brand – Beijing Huaeder |
| Linear Guide Rail & Slider | Nanjing Gongyi |
| Forming Rollers | Cr12MoV alloy steel, vacuum quenched & precision turned, high hardness, wear-resistant |
| Main Bearings | Imported SKF or HRB (Harbin) precision bearings |
| Cutting Blade | H13 tool steel, vacuum quenched, high hardness, fast shearing & extended service life |
Technical Blueprint & Specification Sheet

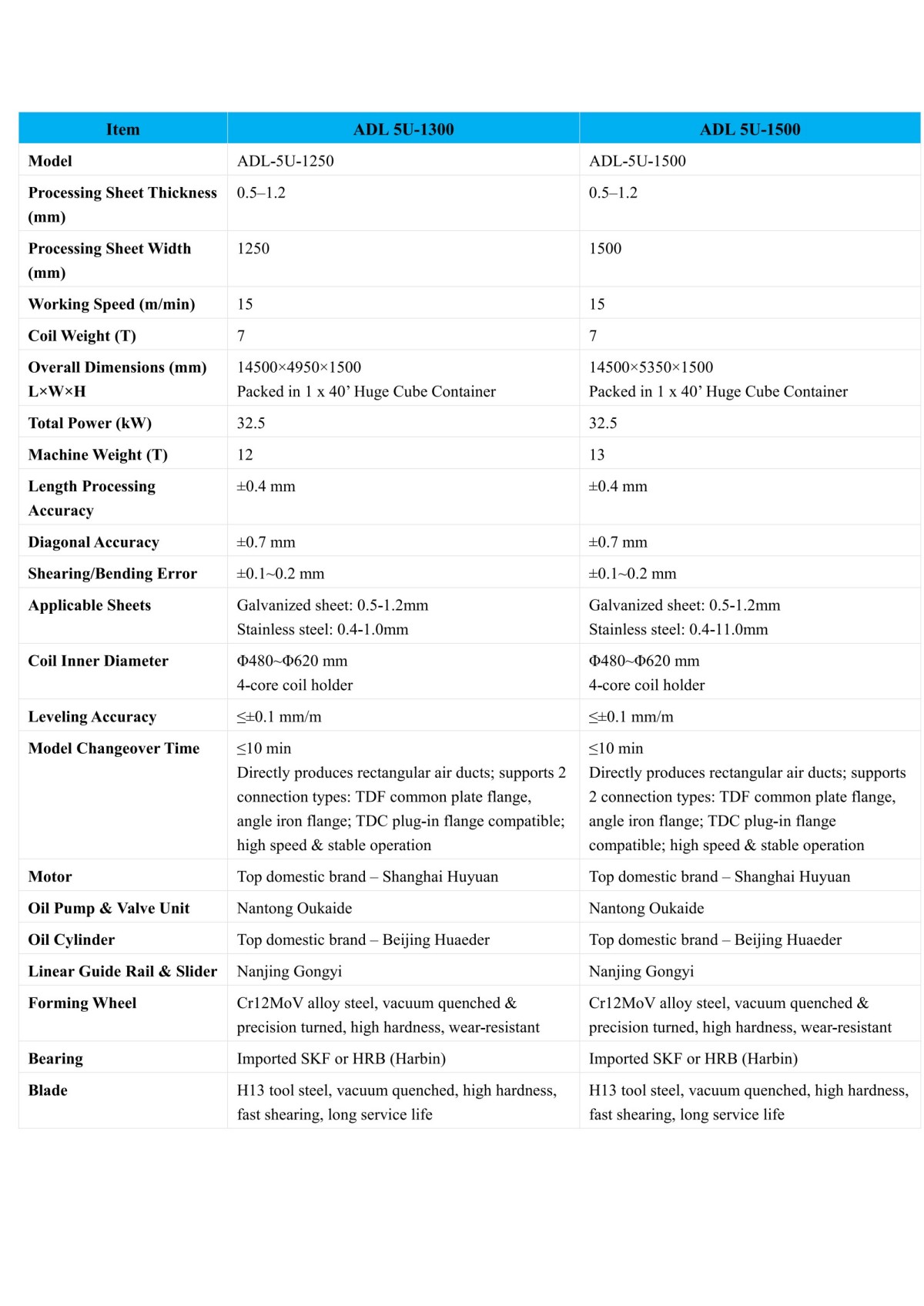

Complete ADL 5U Specification & Parameter Sheet
Factory Workshop & Production Line Showcase

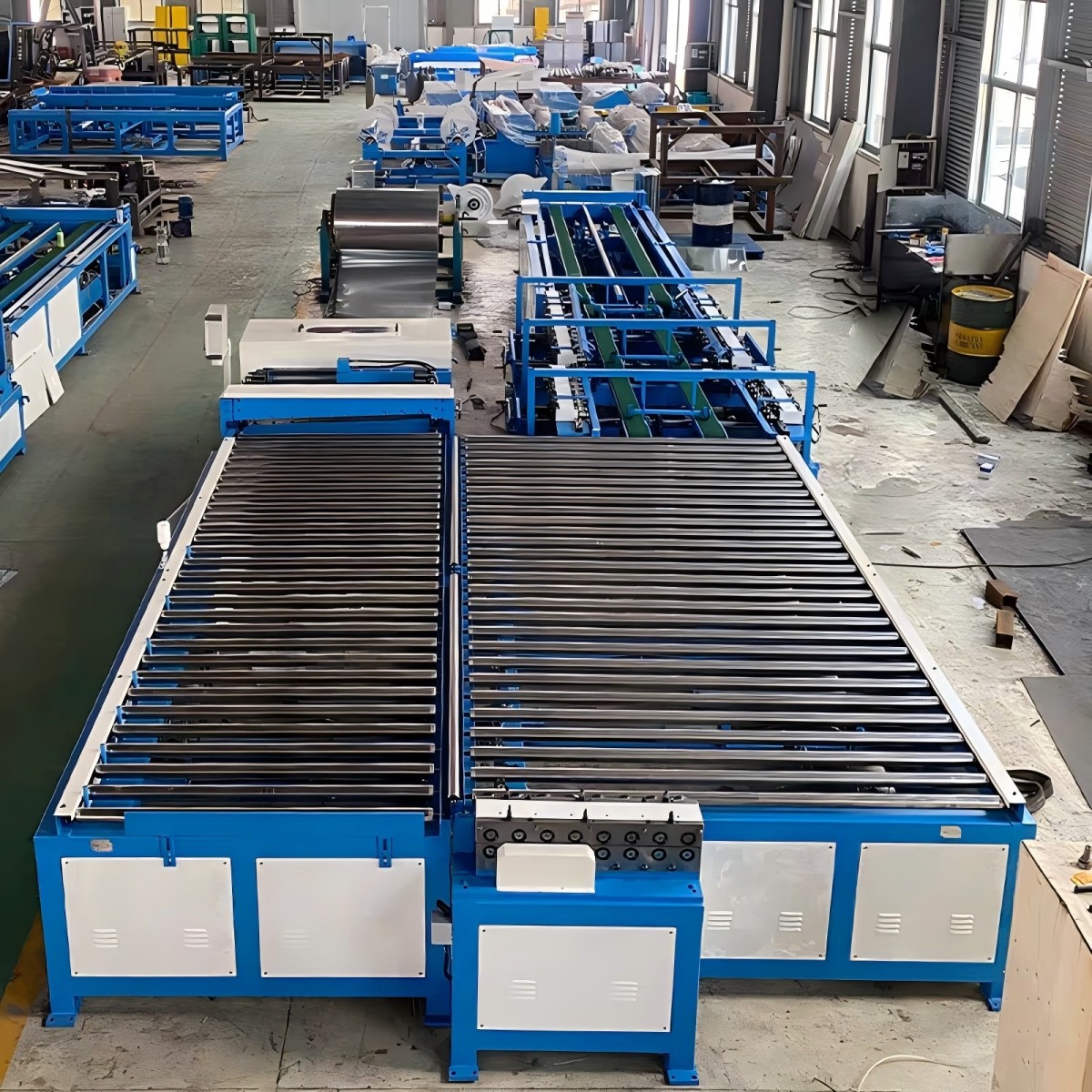

Overhead Line Layout View

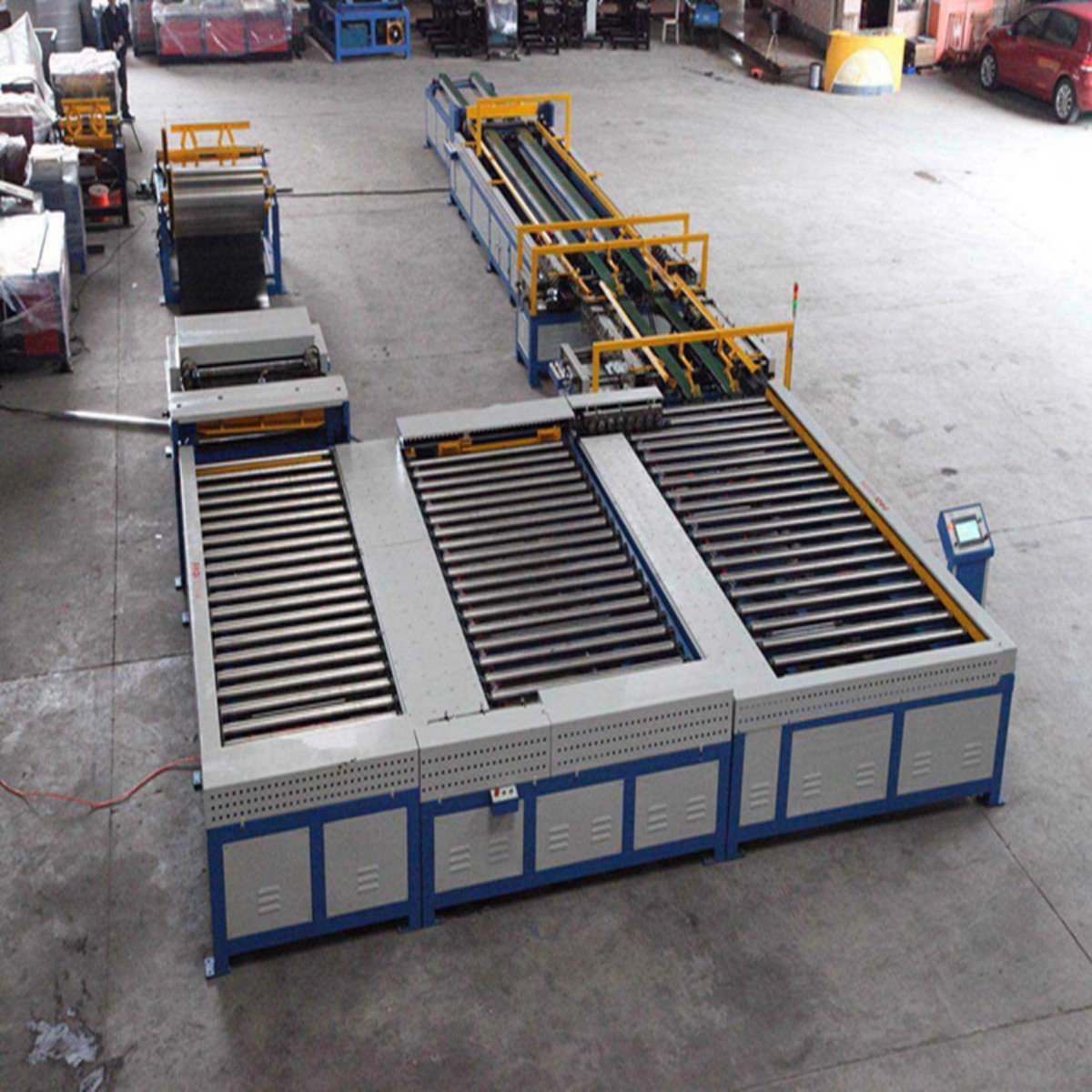

Modular Line Top-Down View

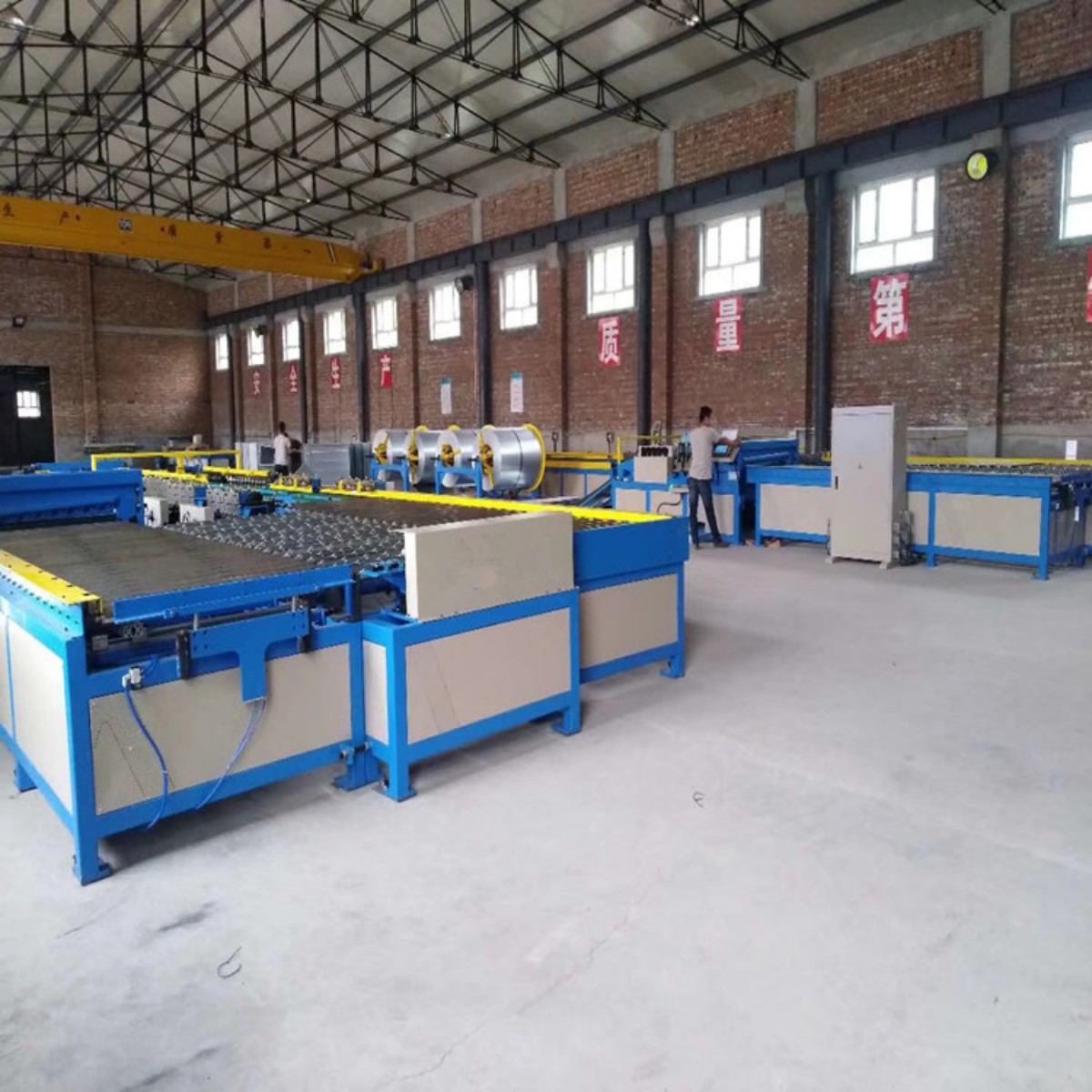

Factory Production Facility
